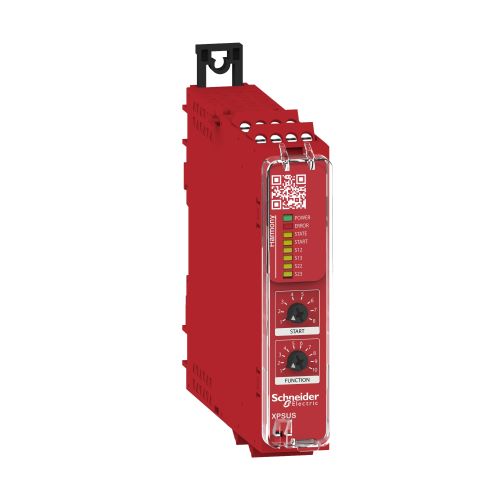

SE Sigurnosni modul Harmony Safety Automation Cat.4 features 2*XPSUAF + enabling movement 48-240v AC/DC vijak
Raspoloživost:
Rok isporuke 21 dan
Šifra proizvoda: XPSUS32AP
27.432,30 RSD
Rok isporuke 21 dan
| range of product | Harmony Safety Automation |
|---|---|
| product or component type | Safety module |
| safety module name | XPSUS |
| safety module application | For electrical monitoring of two-hand control stations Monitoring antivalent contacts For emergency stop, guard and light curtain monitoring For enabling switch monitoring |
| function of module | Emergency stop button with 2 NC contacts Guard monitoring with 1 or 2 limit switches Monitoring 2 PNP sensors Magnetic switch monitoring Light curtain monitoring RFID switch Monitoring of electro-sensitive protection equipment (ESPE) Enabling switch monitoring Proximity sensor monitoring Monitoring two-hand control station |
| safety level | Can reach PL e/category 4 conforming to ISO 13849-1 Can reach SILCL 3 conforming to IEC 62061 Can reach SIL 3 conforming to IEC 61508 |
| safety reliability data | MTTFd > 30 years conforming to ISO 13849-1 Dcavg >= 99 % conforming to ISO 13849-1 PFHd = 1.61E-09 conforming to ISO 13849-1 HFT = 1 conforming to IEC 62061 PFHd = 1.61E-09 conforming to IEC 62061 SFF > 99% conforming to IEC 62061 HFT = 1 conforming to IEC 61508-1 PFHd = 1.61E-09 conforming to IEC 61508-1 SFF > 99% conforming to IEC 61508-1 Type = B conforming to IEC 61508-1 |
| electrical circuit type | NC pair PNP pair Antivalent pair OSSD pair |
| connections – terminals | Removable screw terminal block, 0.2…2.5 mm² solid or flexible Removable screw terminal block, 0.25…2.5 mm² flexible with ferrule single conductor Removable screw terminal block, 0.2…1.5 mm² solid or flexible twin conductor Removable screw terminal block, 2 x 0.25…1 mm² flexible with ferrule without cable end, with bezel Removable screw terminal block, 2 x 0.5…1.5 mm² flexible with ferrule with cable end, with bezel |
| [Us] rated supply voltage | 48…240 V AC/DC – 10…10 % |
