Kompaktni prekidači i oprema

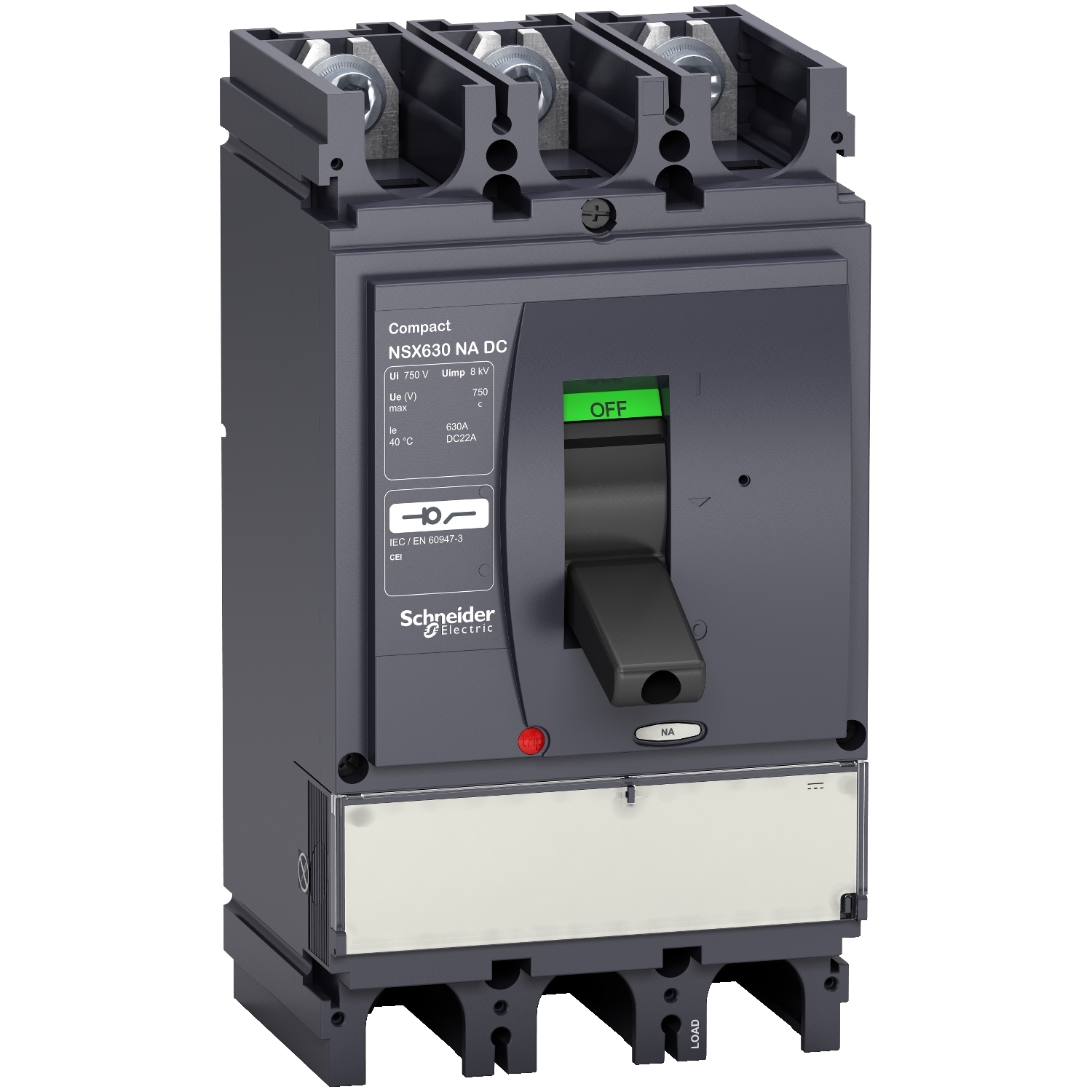

SE Prekidač Compact NSX400…630NA DC 400A 3P fiksni
Raspoloživost:
Nema na zalihama
Šifra proizvoda: LV438153
zamenjen sa C403400DS
126.490,00 RSD
Nema na zalihama
| range |
ComPact
|
|
|---|---|---|
| product name |
ComPact NSX DC
|
|
| product or component type |
Switch disconnector
|
|
| device short name |
Compact NSX400NA DC
|
|
| poles description |
3P
|
|
| network type |
DC
|
|
| [Ue] rated operational voltage |
750 V DC conforming to IEC 60947-3
|
|
| [Ie] rated operational current |
DC-22A: 400 A DC 750 V
|
|
| [Ui] rated insulation voltage |
750 V DC conforming to IEC 60947-3
|
|
| [Uimp] rated impulse withstand voltage |
8 kV conforming to IEC 60947-3
|
|
| [Ith] conventional free air thermal current |
400 A
|
|
| [Icm] rated short-circuit making capacity |
7.5 kA switch-disconnector alone
|
|
| breaking capacity code |
NA
|
|
| suitability for isolation |
Yes conforming to EN 60947-3
|
|
| contact position indicator |
Yes
|
|
| visible break |
No
|
|
| utilisation category |
DC-22A
|
|
| pollution degree |
3 conforming to IEC 60947-3
|
Preuzmite PDF
